1 kV insulation tester

Click to enlarge

MD-1035x

1 kV insulation tester

  • Insulation resistance up to 1 TΩ
  • Auto-range
  • Automatic measurement:
  • Dielectric Absorption Index (DAI) and Polarization Index (PI)
  • Real-time clock and calendar
  • Built-in memory for up to 4,000 measured values
  • USB interface
  • Programable pass-fail test
  • Built-in printer
  • Internal rechargeable battery
Overview
Specifications
Accessories

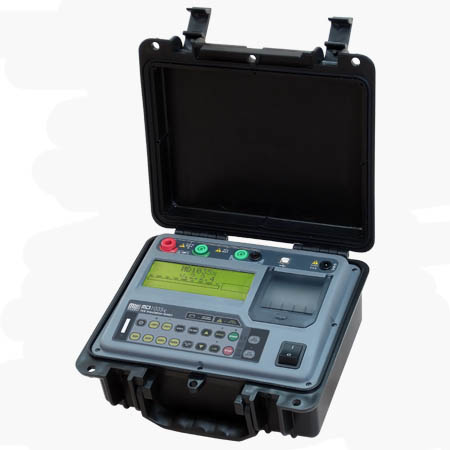

The MEGABRAS MD-1035x is a smart, microprocessor-controlled, 1 kV insulation tester. Besides the conventional measurement of insulation resistances up to 1 TΩ, its advanced features allow to automatically measure both the Polarization Index and Dielectric Absorption Index, thus significantly simplifying testing of transformers.

This insulation tester is a portable, battery-powered equipment. Test voltage may be chosen from 100 V to 1 kV in 50 V increments. Due to its measurement principle (actual voltage and current readings) the accuracy of resistance measurement is not affected by any test voltage error.

The built-in chronometer automatically counts the elapsed time since the start of measurement. Measured values are transmitted through the USB interface and are printed in the built-in printer as a registration of the performed test. Furthermore, the measured values are stored in a non-volatile internal memory. Up to 4,000 measured values may be stored, to be transferred afterward to a computer running the MegaLogg2 program. This software allows a further analysis of the test results, including a graphical representation and automatic report generation. The real time clock and calendar, and the sequential test number, facilitates the identification of each test, and the organization of a predictive maintenance system by trend analysis.

Some other advanced features are useful to run the most sophisticated insulation analysis. Configurable Pass-Fail and timed measurements are automatically performed, with a very simple and userfriendly setup. The measurement parameters are stored in the non-volatile memory for an easy configuration.

In order to guarantee the operator safety, the cabinet is made of a high breakdown strength plastic. Output terminals are placed in the furthest and most protected area of the equipment. A light indicator shows high-voltage presence and is switched-off when the capacities (both internal and external) are discharged up to reaching a safe value.

MD-1035x is powered using a rechargeable battery. The cabinet is strong and lightweight, easy to carry, impact-resistant and suitable to be used under severe weather conditions. Thus the instrument supplies very reliable and accurate measurements both in laboratory and out in the field.

Images for illustration purposes only. Megabras reserves the right to change design and specifications without prior notice. Accessories with 6 months limited warranty.
