Earth Ground Tester
- Digital and automatic
- Earth resistance measurement
- Ground resistivity (Wenner’s method)
- Spurious voltage measurement
- High spurious voltage rejection
- Indication of anomalies in the current circuit
- 0.01 Ω resolution
- Up to 20 kΩ resistance range
- Rechargeable NiMH battery
- IP65 rated (with closed lid)
- Graphic display (128 x 64 px)
![IEC-61557-5](/img/icons/ic_IEC-61557-5.png)
![CE](/img/icons/ic_CE.png)
![Double Insulated](/img/icons/ic_DOUBLE_AISLATION.png)
![Remote control by Android device Remote Control](/img/icons/ic_smartphone.png)
Overview
Specifications
Accessories

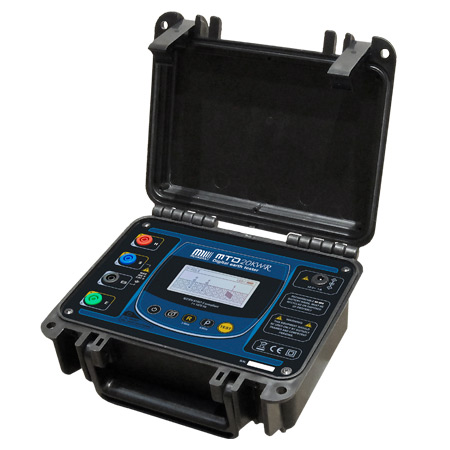

The MTD20KWR digital earth ground tester allows for the measurement of earth resistances and soil resistivity, and also the spurious voltages caused by parasitic voltages present in the soil. This equipment is suitable for fast and easy measurement of the grounding resistance in house and industrial buildings, hospital installations, lightning rods, antennas, substations, etc. Soil resistivity measurement allows for soil stratification in order to optimize the most complex grounding systems.
Its state-of-the-art system of active and passive filters provides it with high immunity to electric interferences, making it possible to obtain reliable measurements even in the presence of spurious voltages, such as the ones that can be found in some urban areas and near primary substations.
A 1,470 Hz internal generator injects alternated current on the soil through an auxiliary rod. The voltage generated over the earth resistance is measured by the apparatus, and the resistance value is evaluated. The test current is automatically regulated.
Because of its wide range of measurement (from 0.01 Ω up to 20 kΩ), this equipment allows for reliable testing in all kinds of soils, including those that offer very high resistivity.
It has a sturdy cabinet, easy and safe-to-carry, with an IP65 protection grade (closed lid). It is suitable to work under adverse geographical and environmental conditions, with extreme temperatures in cold or tropical regions and in high mountain areas, showing a reliable performance in the field.
Its state-of-the-art system of active and passive filters provides it with high immunity to electric interferences, making it possible to obtain reliable measurements even in the presence of spurious voltages, such as the ones that can be found in some urban areas and near primary substations.
A 1,470 Hz internal generator injects alternated current on the soil through an auxiliary rod. The voltage generated over the earth resistance is measured by the apparatus, and the resistance value is evaluated. The test current is automatically regulated.
Because of its wide range of measurement (from 0.01 Ω up to 20 kΩ), this equipment allows for reliable testing in all kinds of soils, including those that offer very high resistivity.
It has a sturdy cabinet, easy and safe-to-carry, with an IP65 protection grade (closed lid). It is suitable to work under adverse geographical and environmental conditions, with extreme temperatures in cold or tropical regions and in high mountain areas, showing a reliable performance in the field.
Remote control by device with Android™
This instrument has Bluetooth® interface and can be controlled remotely via a smartphone / tablet with Android™ running the BlueLogg application.
Available on Google Play
Source code
• Android and Google Play are trademarks of Google LLC
• Bluetooth is a registered trademark of the Bluetooth SIG, Inc. Worldwide
Source code
![](/img/pic_smartphone.png)
Available on Google Play
• Android and Google Play are trademarks of Google LLC
• Bluetooth is a registered trademark of the Bluetooth SIG, Inc. Worldwide.
Source code
Images for illustration purposes only. Megabras reserves the right to change design and specifications without prior notice. Accessories with 6 months limited warranty.
